Health Radar — Documentation

🔎What It Does

Health Radar is a diagnostic plugin for WordPress administrators and developers. It audits installed plugins across six dimensions and surfaces problems before they reach end users.

🔍

Conflict Detector

Scans $wp_scripts and $wp_styles for duplicate source files. Detects hook collisions in $wp_filter.

⚡

Performance Panel

Tracks enqueued JS/CSS count, asset payload size, DB query count via SAVEQUERIES, and autoload bloat.

🐘

PHP Compatibility

Reads each plugin's Requires PHP header and compares against the active PHP version. Flags deprecated function usage.

📋

Debug Log Analyzer

Parses debug.log, categorizes as Fatals / Warnings / Notices, and attributes errors to the originating plugin.

🧬

Duplicate Asset Detector

Fingerprints local JS/CSS via md5_file(). Recognizes jQuery, Lodash, Moment.js, and Chart.js signatures.

📄

Report Generator

Aggregates all module output into a single printable page. Export to PDF or pull JSON via WP-CLI for automated pipelines.

ℹ

Detection only. This plugin never modifies plugin files, settings, or hook priorities. All scans run on-demand — nothing runs automatically on page load.

🖼Screenshots

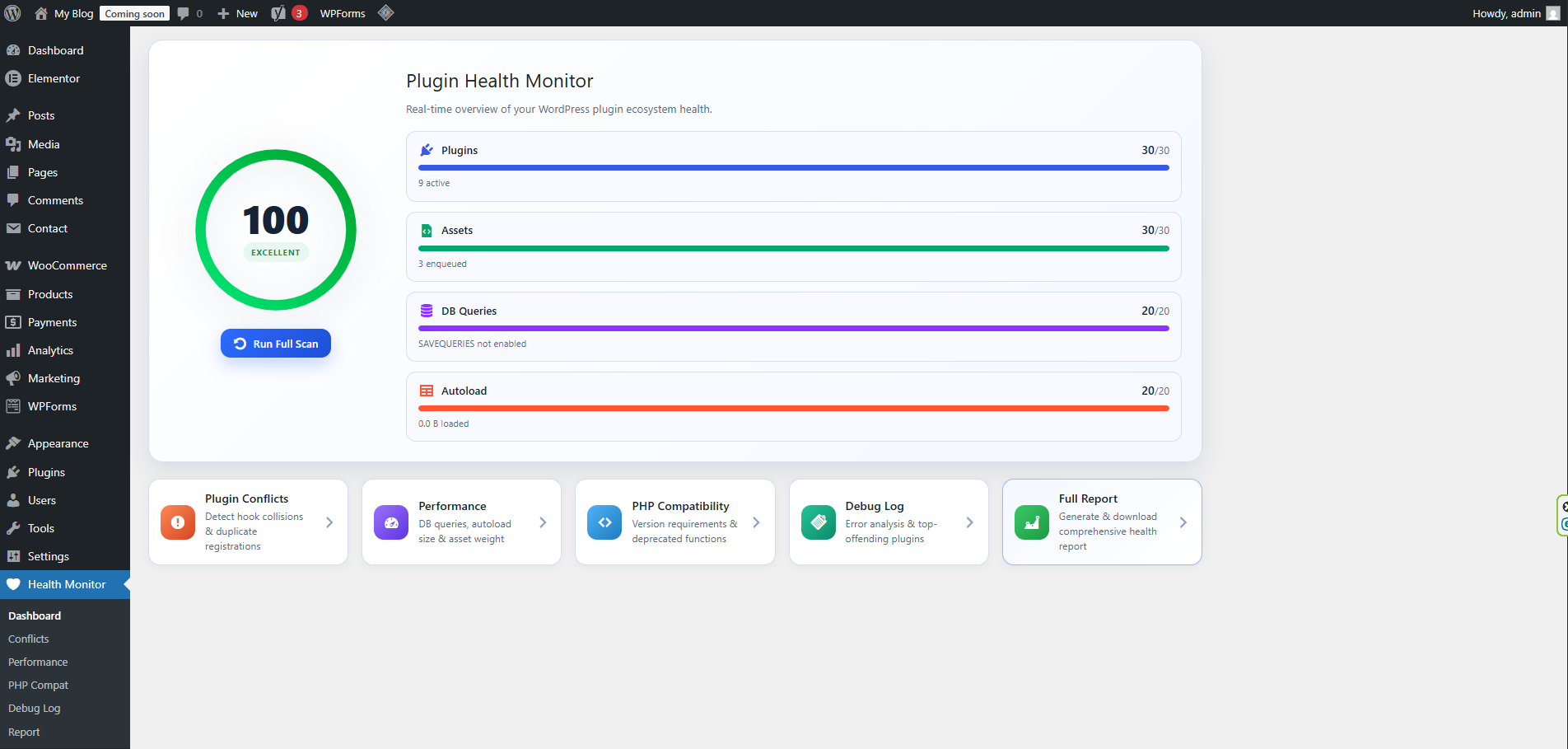

Dashboard — Health Score

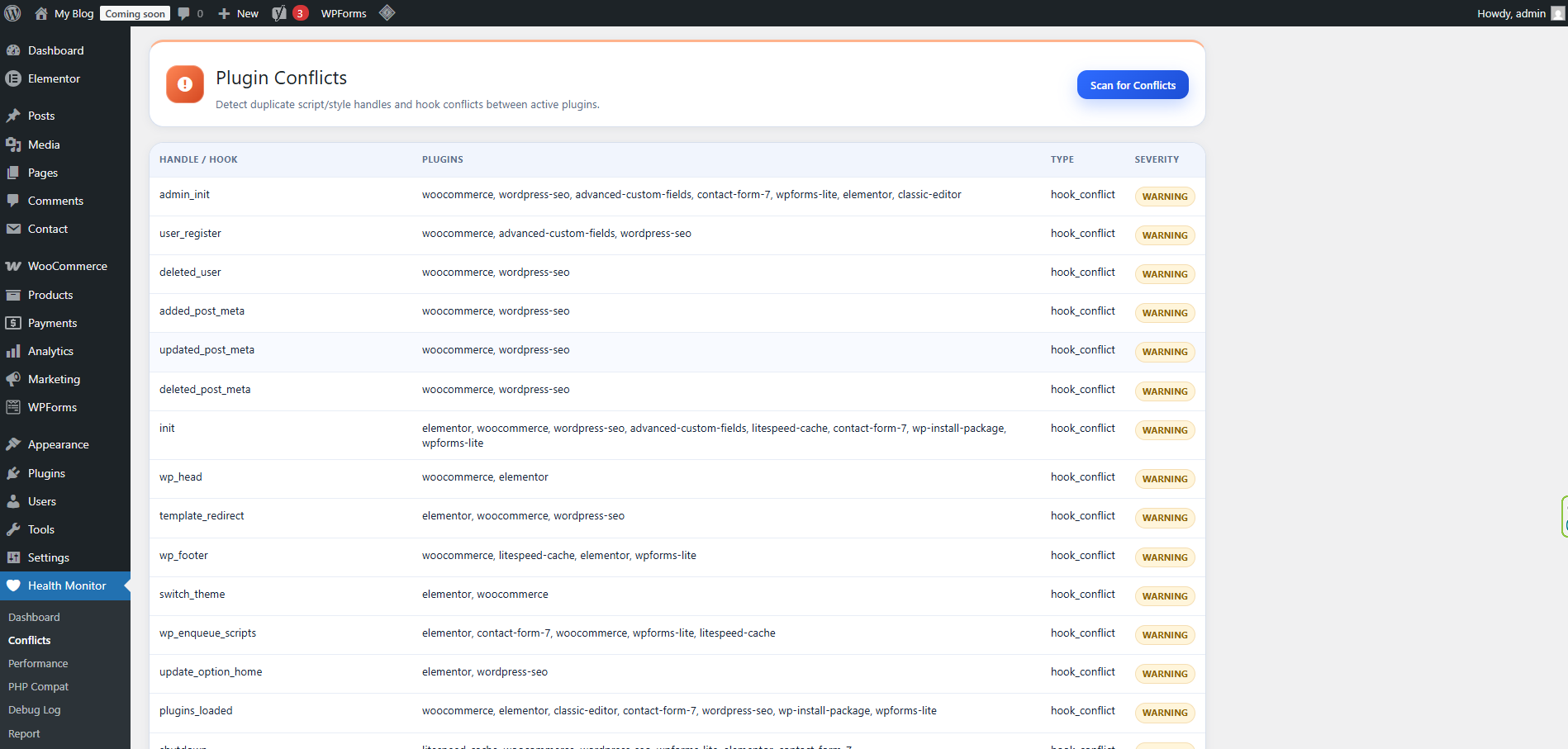

Conflicts Detector

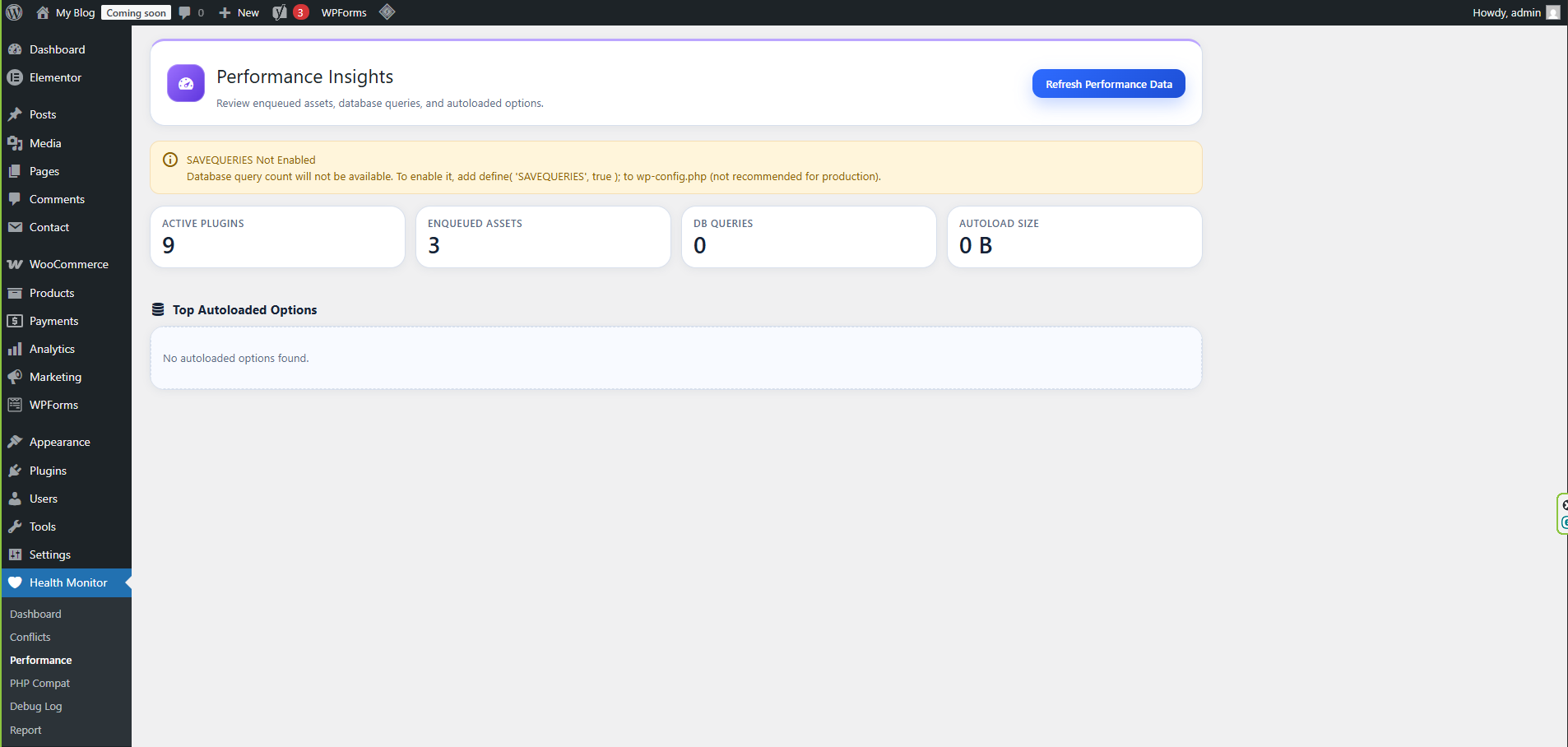

Performance Panel

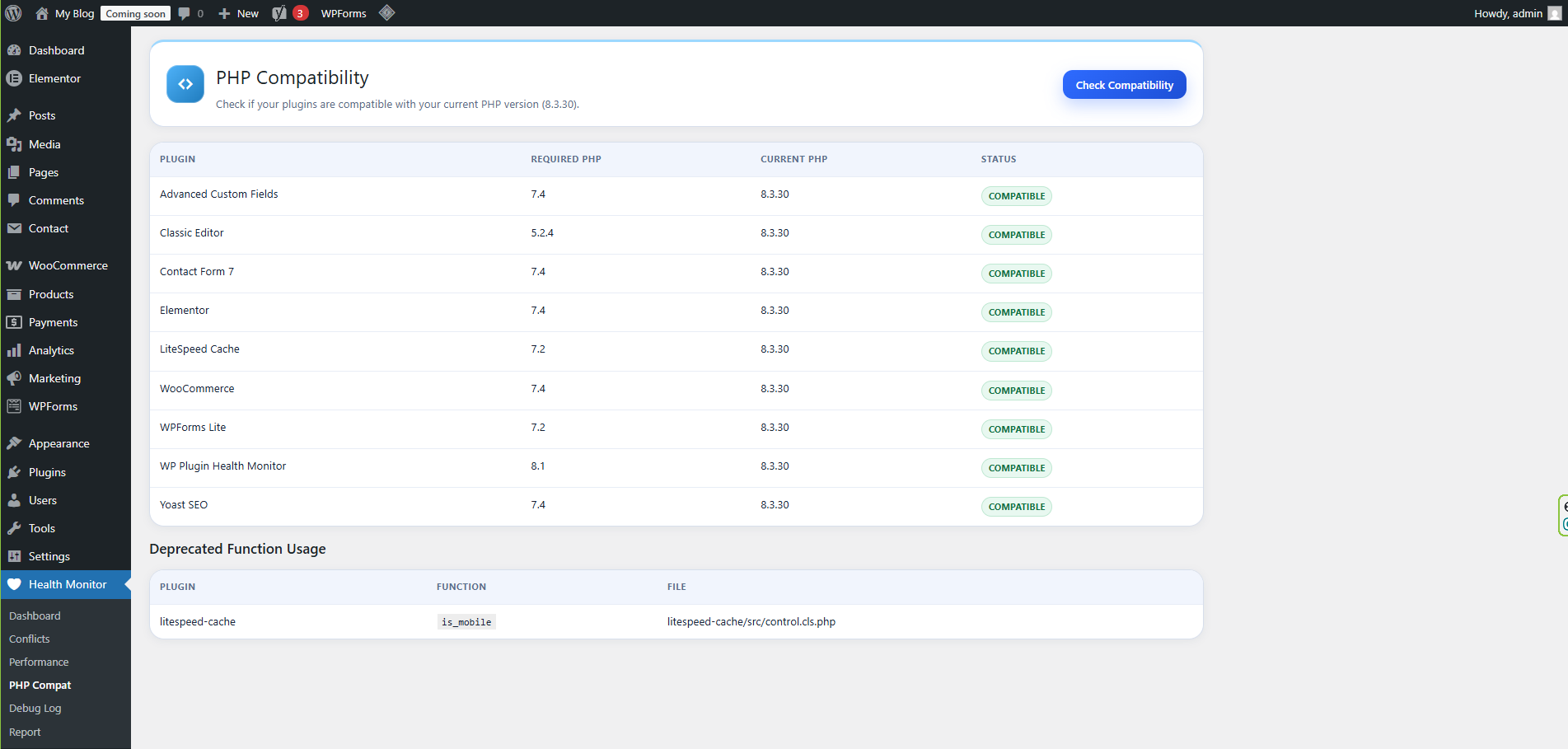

PHP Compatibility

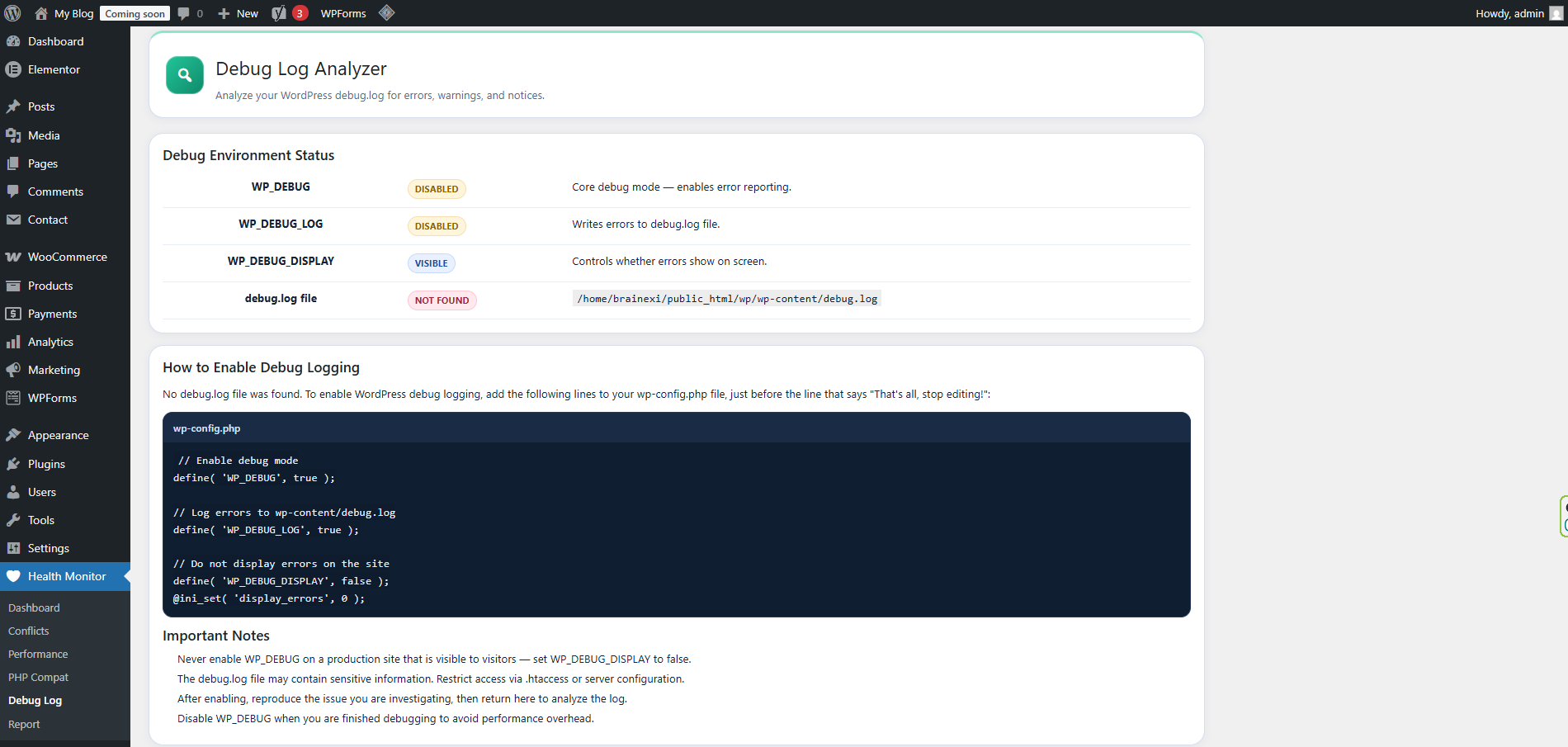

Debug Log Analyzer

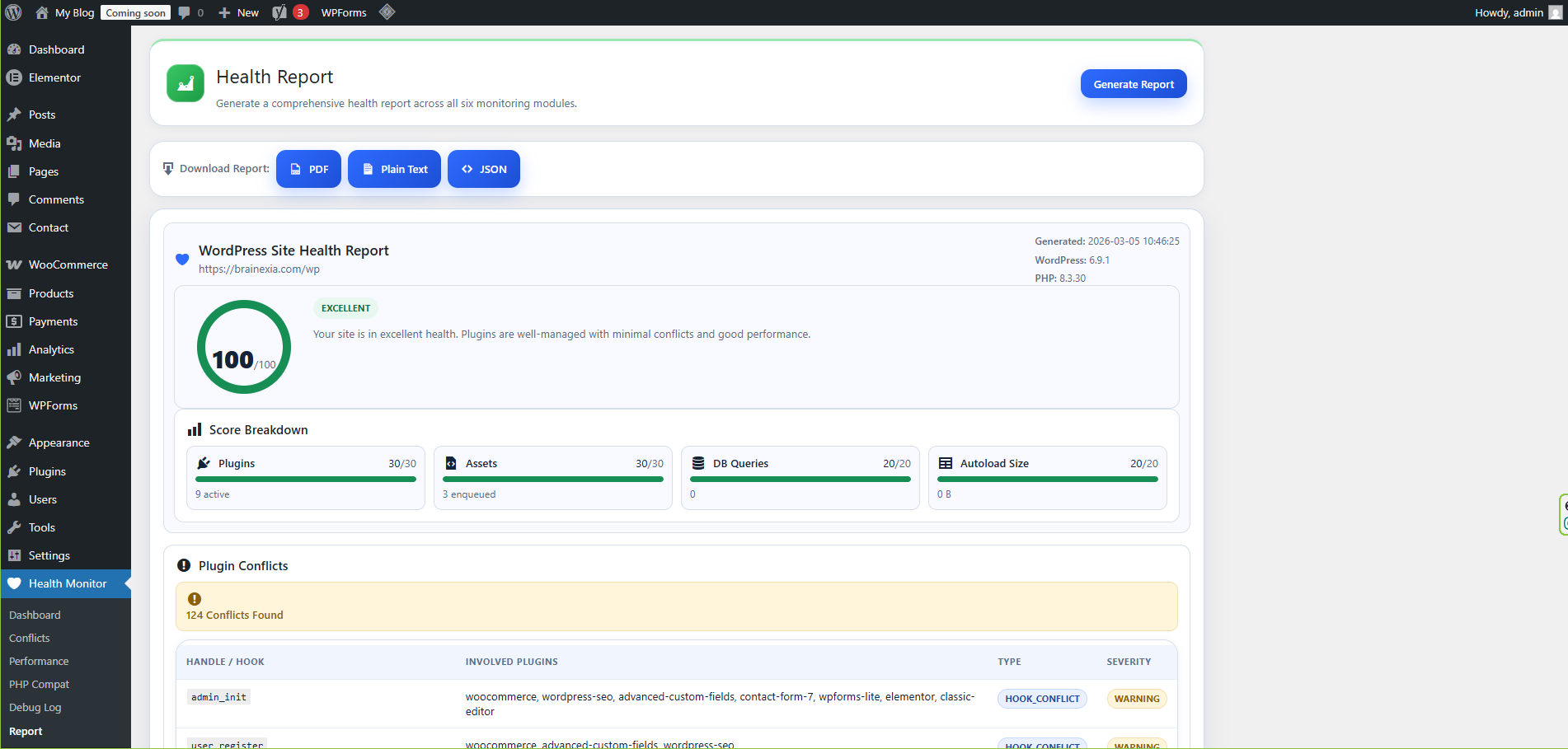

Health Report

⚙Installation

WordPress Dashboard

1Go to Plugins → Add New Plugin
2Search for Health Radar
3Click Install Now, then Activate

Manual Upload

1Download health-radar.zip from the Releases page
2Go to Plugins → Add New Plugin → Upload Plugin
3Select the ZIP file → Install Now → Activate Plugin

Via WP-CLI

bash
wp plugin install health-radar --activate

Download

↓ health-radar.zip v1.0.0

        SHA256: 5837ddfb134a8ac34a54df1098c155e19897ec10cd874318df70e11dbe50e69e


Server Requirements

Requirement	Minimum
WordPress	6.3
PHP	8.1
`wp-content/`	Read permission (for debug.log)

🚀Getting Started

1After activation, a Health Radar menu appears in the WordPress admin sidebar
2Navigate to Health Radar → Dashboard
3Click Run Full Scan to generate your first health report
4Review your Health Score and explore each module

✓

Scan results are cached for 1 hour. Use the Re-scan button on any page to force a fresh scan.

📊Dashboard

📊

Dashboard

/wp-admin/admin.php?page=wphm-dashboard

WPHM_Health_Scorer

The Dashboard provides a high-level overview of your site's plugin health with a composite 0–100 score.

What It Shows

Element	Description
Health Score Gauge	0–100 composite score from four weighted factors
Score Breakdown	Individual scores for plugins, assets, DB queries, autoload
Module Summary Cards	Quick status for all six modules
Run Full Scan	Triggers a fresh scan across all modules

Score Colors

Score	Status
80–100	Healthy
50–79	Needs attention
0–49	Critical issues

🔍Conflicts

🔍

Plugin Conflict Detector

/wp-admin/admin.php?page=wphm-conflicts

WPHM_Plugin_Scanner

Duplicate Asset Conflicts

Scans $wp_scripts and $wp_styles globals for the same src URL registered under different handles. Shows: conflicting handles, file type (script/style), and originating plugins.

Hook Conflicts

Inspects $wp_filter for two or more plugins attaching callbacks to the same action or filter hook. Shows: hook name, priority, callback names, and plugin file paths.

Severity Levels

Severity	Meaning
High	Same file loaded twice — definite performance impact
Medium	Multiple callbacks on same hook — potential behavior conflict
Low	Informational — worth reviewing

⚡Performance

⚡

Performance Insight Panel

/wp-admin/admin.php?page=wphm-performance

WPHM_Health_Scorer

Enqueued Assets

Counts all enqueued JavaScript and CSS files. Estimates total payload size from local file sizes on disk.

Database Queries

Measures total DB query count for the current page load. Requires SAVEQUERIES to be enabled in wp-config.php.

php
// Add to wp-config.php — staging/development only
define( 'SAVEQUERIES', true );

⚠

Only enable SAVEQUERIES on staging environments. It increases memory usage and slows production sites.

Autoloaded Options

Queries wp_options for all rows where autoload = 'yes' and calculates total byte size. High autoload size adds overhead to every page load.

Performance Thresholds

Metric	Excellent	Moderate	Poor
Plugin count	≤10 (30 pts)	11–20 (20 pts)	21+ (10 pts)
Asset count	≤15 (30 pts)	16–30 (20 pts)	31+ (10 pts)
DB queries	≤30 (20 pts)	31–60 (10 pts)	61+ (5 pts)
Autoload size	<1 MB (20 pts)	1–3 MB (10 pts)	>3 MB (5 pts)

🐘PHP Compatibility

🐘

PHP Compatibility Checker

/wp-admin/admin.php?page=wphm-php-compat

WPHM_PHP_Checker

Version Compatibility

For each installed plugin: reads the Requires PHP header from get_plugins(), falls back to parsing readme.txt, and compares against PHP_VERSION.

Deprecated Function Scanner

Scans each plugin's PHP files for usage of known deprecated WordPress core functions (WP 5.3 through 6.5).

Function	Deprecated in
`wp_blacklist_check()`	WP 5.5
`wp_no_robots()`	WP 6.1
`get_page()`	WP 6.2
`wp_get_loading_attr_default()`	WP 6.3
`_wp_get_current_user()`	WP 6.4
`the_block_template_skip_link()`	WP 6.4
`_register_remote_theme_patterns()`	WP 6.5

Scanner Limits

Limit	Value
Max PHP files per plugin	500
Max file size scanned	256 KB

📋Debug Log

📋

Debug Log Analyzer

/wp-admin/admin.php?page=wphm-debug-log

WPHM_Debug_Log_Reader

Enable Debug Logging

php
// Add to wp-config.php
define( 'WP_DEBUG', true );
define( 'WP_DEBUG_LOG', true );
define( 'WP_DEBUG_DISPLAY', false );

What It Shows

Element	Description
Log file status	Existence and size of `wp-content/debug.log`
Error summary	Counts of Fatals, Warnings, and Notices
Top offending plugins	Up to 5 plugins with the most errors (via stack trace matching)
Recent entries	Last 50 log entries with timestamp, type, message, and file

Scanner Limits

Setting	Value
Max bytes read (from tail)	1 MB
Recent entries shown	50
Max entries retrievable	200

📄Generate Report

📄

Health Report Generator

/wp-admin/admin.php?page=wphm-report

WPHM_Report_Generator

Aggregates all module results into a single page: site URL, WP version, PHP version, timestamp, Health Score, conflicts, duplicate assets, PHP compatibility, and debug log summary.

Export Options

Format	How
JSON	Click Download JSON in the admin, or `wp healthmonitor report --format=json`
Plain Text	Click Download TXT in the admin — line-delimited plain text, no HTML
PDF	Click Print Report (Ctrl+P / Cmd+P) — browser native print dialog

💯How the Health Score Works

The Health Score is a composite 0–100 value calculated by WPHM_Health_Scorer::get_score() from four weighted dimensions.

30

Plugin Count

30

Asset Count

20

DB Queries

20

Autoload Size

Dimension	Max	Excellent	Moderate	Poor
Plugin count	30	≤10 → 30	11–20 → 20	21+ → 10
Enqueued assets	30	≤15 → 30	16–30 → 20	31+ → 10
DB queries	20	≤30 → 20	31–60 → 10	61+ → 5
Autoload size	20	<1 MB → 20	1–3 MB → 10	>3 MB → 5

ℹ

If SAVEQUERIES is not enabled, the DB dimension returns its minimum (5 pts) to avoid a misleadingly high score.

💻WP-CLI Commands

$ wp healthmonitor scan

Runs a full health scan across all six modules. Outputs a summary to the terminal.

$ wp healthmonitor score

Displays the Health Score and its four-dimension breakdown.

$ wp healthmonitor conflicts

Lists all detected plugin conflicts — duplicate assets and hook collisions.

$ wp healthmonitor report

Generates the full health report and outputs a human-readable summary.

$ wp healthmonitor report --format=json

Outputs the full report as JSON. Suitable for CI/CD pipelines and monitoring scripts.

$ wp healthmonitor log --last=50

Displays the last N debug log entries (default: 50, max: 200).

Pipeline Example

bash
# Get health score as JSON and filter with jq
wp healthmonitor report --format=json | jq '.health_score.total'

# List all duplicate assets
wp healthmonitor report --format=json | jq '.conflicts.duplicate_assets'

# Fail CI if health score is below 60
SCORE=$(wp healthmonitor report --format=json | jq '.health_score.total')
if [ "$SCORE" -lt 60 ]; then
  echo "Health score too low: $SCORE"
  exit 1
fi

⚡Caching

All scan results are cached using WordPress transients to avoid re-running expensive operations on every page load.

Transient Key	Module	TTL
`wphm_health_score`	Health Scorer	1 hour
`wphm_conflict_results`	Plugin Scanner	1 hour
`wphm_performance_results`	Performance	1 hour
`wphm_php_compat_results`	PHP Checker	1 hour
`wphm_debug_log_results`	Debug Log Reader	1 hour
`wphm_duplicate_asset_results`	Asset Analyzer	1 hour
`wphm_last_report`	Report Generator	1 hour

✓

All transients are automatically deleted when the plugin is deactivated. WP-CLI commands bypass the cache and always run fresh scans.

🔒Security

✓

Nonce verification check_ajax_referer() on all AJAX handlers

✓

Capability checks manage_options required on all admin pages

✓

Output escaping esc_html(), esc_attr(), esc_url() everywhere

✓

Prepared queries $wpdb->prepare() on all raw SQL

✓

WP_Filesystem API No direct fopen/fread — all file reads via WP_Filesystem

✓

Path validation realpath() before any file read to prevent path traversal

✓

Direct access blocked ABSPATH guard in every PHP file

✓

Zero external requests No outbound HTTP calls — all data stays on your server

🛡Privacy

🛡

This plugin does not collect, transmit, or store any data outside of the WordPress site it is installed on. No telemetry. No tracking. No external API calls. Zero outbound HTTP requests.

All scan data is stored locally in WordPress transients and automatically deleted when the plugin is deactivated.

❓FAQ

No. All scans are triggered manually. Nothing runs automatically on page load. Cached results are served from WordPress transients with no overhead.

No. The plugin detects and reports issues only. It never modifies plugin files, settings, or hook priorities.

The query counter only works when SAVEQUERIES is set to true in wp-config.php. The plugin never enables this on its own. Use it on staging environments only.

WordPress debug logging must be enabled in wp-config.php. Set WP_DEBUG and WP_DEBUG_LOG to true and ensure WP_DEBUG_DISPLAY is false.

The Debug Log Analyzer reads the file path from each stack trace entry in debug.log and matches it against known plugin directory names under wp-content/plugins/.

Yes. It only reads data — it never writes or modifies anything. The only exception: enabling SAVEQUERIES for DB query counting should only be done on staging environments.

Yes. Use wp healthmonitor report --format=json to get machine-readable JSON output. Pipe to jq for filtering and integrate into any automated pipeline or monitoring script.

🛠Developer Reference

Plugin Constants

Constant	Value
`WPHM_VERSION`	`1.0.0`
`WPHM_PLUGIN_DIR`	Absolute path to plugin directory (trailing slash)
`WPHM_PLUGIN_URL`	URL to plugin directory (trailing slash)
`WPHM_PLUGIN_BASENAME`	`health-radar/health-radar.php`
`WPHM_MIN_PHP`	`8.1`

Class Overview

WPHM_Health_Scorer

Calculates the 0–100 composite Health Score from four weighted dimensions

WPHM_Plugin_Scanner

Detects duplicate script/style src values and hook collisions between plugins

WPHM_Asset_Analyzer

Fingerprints local JS/CSS files with md5_file() and detects duplicate assets

WPHM_PHP_Checker

Checks PHP version compatibility and scans for deprecated WordPress functions

WPHM_Debug_Log_Reader

Parses debug.log and attributes errors to plugins via stack trace matching

WPHM_Report_Generator

Aggregates all module output into a unified report array

WPHM_Admin_Menu

Registers admin pages, enqueues assets, handles AJAX requests

WPHM_CLI_Commands

WP-CLI command implementations for all healthmonitor subcommands

Hook Reference

Hook	Type	Purpose
`plugins_loaded`	Action	Plugin initialization via `wphm_init()`
`plugins_loaded`	Action	WP-CLI command registration
`init`	Action	Text domain loading
Activation hook	—	PHP version check and option setup
Deactivation hook	—	Transient cleanup

Text Domain

text
health-radar

Translation files go in the languages/ directory. Follows standard WordPress i18n conventions using __(), esc_html__(), and _e().
